PIONEER MonoScope, black fluted bezel, 45 mm
incl. VAT
on a leather strap
Delivery time: 5-6 days
Size guide for straps
To determine your strap length, you can either measure your wrist circumference and determine your strap length in the table or use our templates, which you can download below.
Please find our templates for download here:
Instructions: Print out the document and make sure that no page scaling is preset. Cut out the template along the red dotted line. Place the watch on your wrist and pull the strap through the cut slit. Make sure that the template is not too tight on your wrist and that you have a little space between your fingers. Please note that leather underlays result in a longer strap length.
Strap lengths:
PIONEER/417 ES: S = (10,5 / 6,5 cm) M = Â (11,5 / 7,5 cm) L = Â (12,5 / 9,0Â cm)
PRIMUS: S = Â (9,5/7,5 cm) M = Â (10,5/8,5 cm) L = Â (12,0/10,0 cm)
Racemaster: S= (10,4/6,4 cm) M= (11,4/7,4 cm) L= (12,4/8,4 cm)
Model | Lug width | Wrist circumference S-strap | Wrist circumference M-strap | Wrist circumference L-strap |
General recommendation, regardless of model and strap | - | 13.0 cm - 16.0 cm | 16.5 cm - 18.5 cm | 19.0 cm - 22.0 cm |
PIONEER Silva | 20 mm | - | 15.0 cm - 21.0 cm | 18.0 cm - 23.5 cm |
417 ES 1954 (with Bund strap) | 20 mm | - | 14.0 cm - 20.0 cm | 17.0 cm - 22.0 cm |
PIONEER Mk I, Mk II, TachyTele, Preventor9 | 20 mm | 13.0 cm - 17.0 cm | 14.0 cm - 20.5 cm | 17.0 cm - 22.5 cm |
Preventor HD12â„¢ | 20 mm | - | 14.0 cm - 20.0 cm | 17.0 cm - 22.0 cm |
417 ES (with Bund strap) | 21 mm | - | 14.0 cm - 20.0 cm | 18.0 cm - 23.0 cm |
PIONEER TwinControl, MonoControl | 21 mm | 13.0 cm - 19.0 cm | 15.5 cm - 21.5 cm | 19.0 cm - 23.5 cm |
PIONEER One | 21 mm | 13.0 cm - 19.0 cm | 15.5 cm - 20.5 cm | 18.0 cm - 23.5 cm |
PIONEER TwinDicator, MonoScope | 23 mm | 13.0 cm - 19.0 cm | 15.5 cm - 21.5 cm | 18.0 cm - 24.0 cm |
RACEMASTER | 23 mm | 13.0 cm - 18.0 cm | 16.5 cm - 21.5 cm | 18.5 cm - 23.5 cm |
PRIMUS leather | 24 mm | 13.0 cm - 17.5 cm | 16.0 cm - 20.0 cm | 18.0 cm - 22.5 cm |
PRIMUS rubber | 24 mm | - | 14.0 cm - 18.5 cm | 17.5 cm - 21.5 cm |
PRIMUS textile | 24 mm | - | 14.5 cm - 19.5 cm | 17.5 cm - 21.5 cm |
ONE FOR ALL

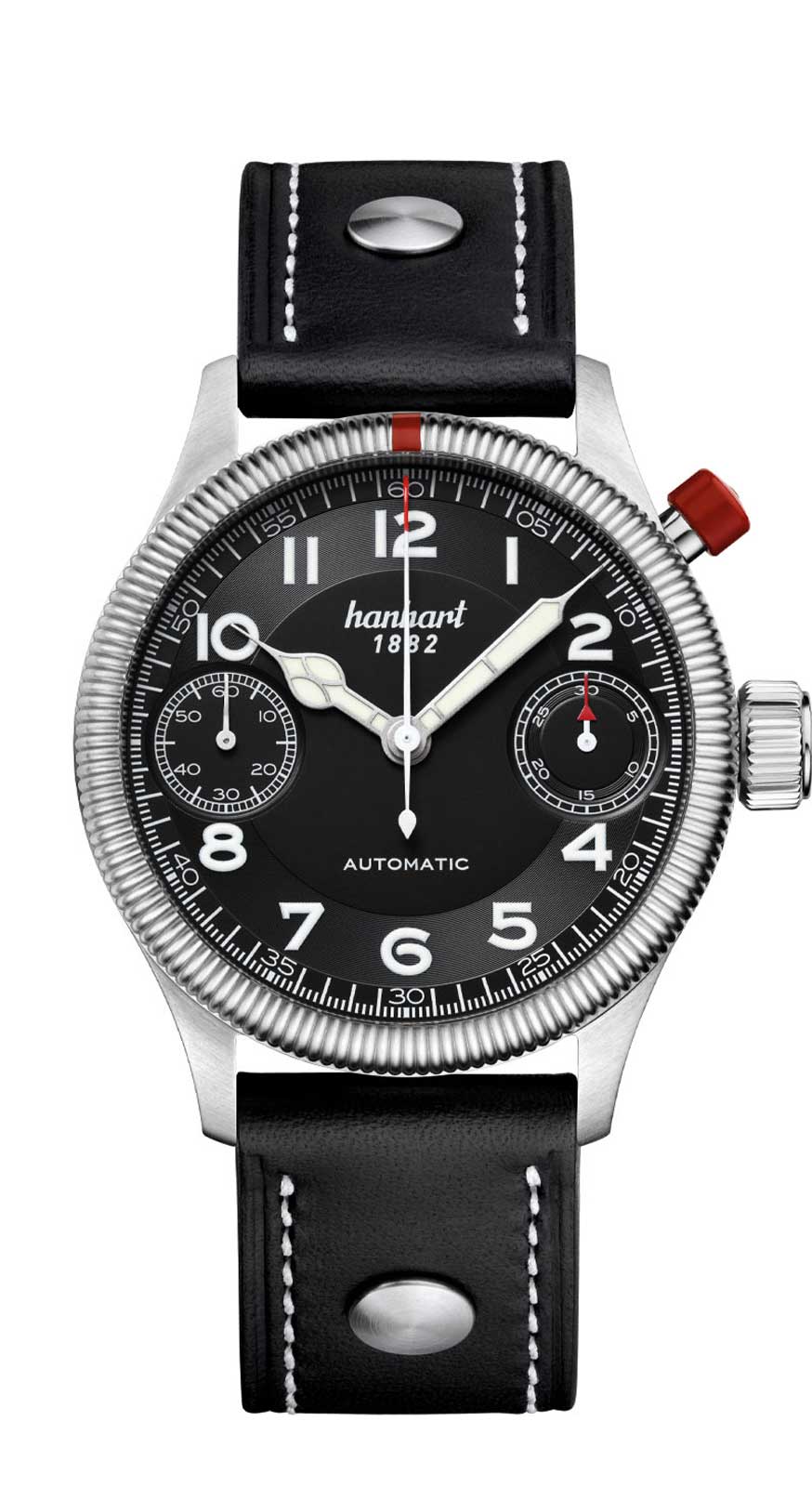

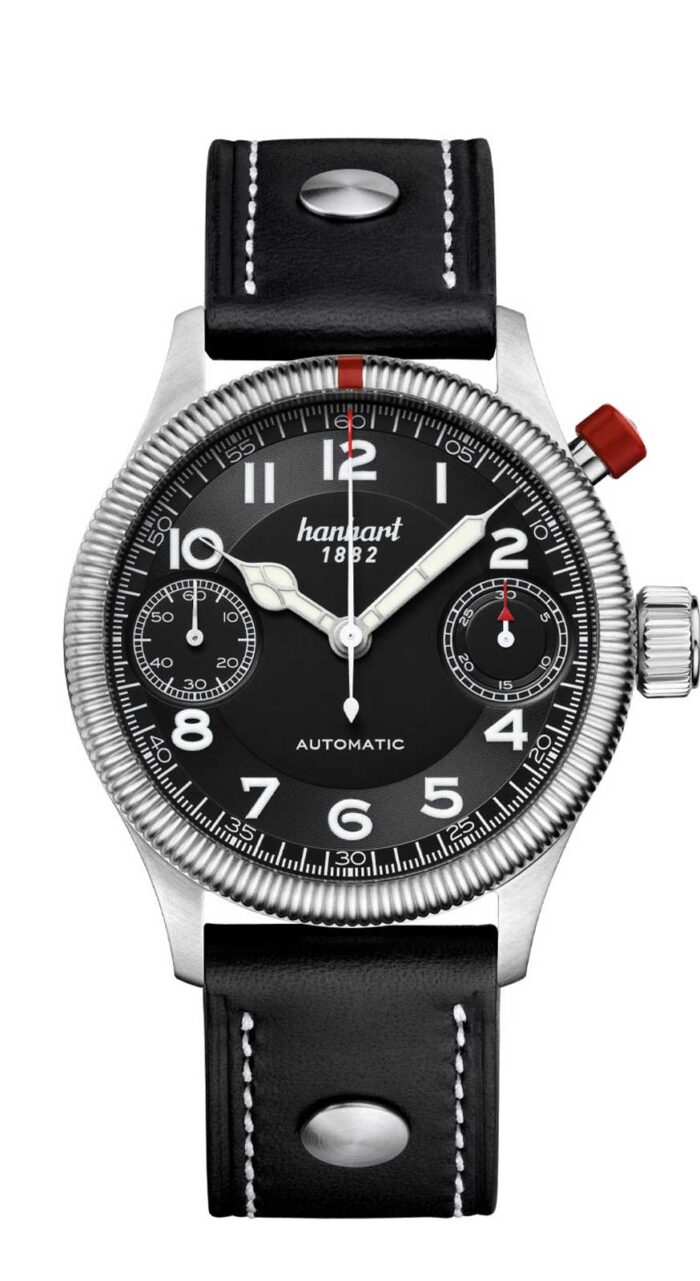

PIONEER MonoScope
EXCEPTIONAL DESIGN
SINGLE-PUSH-BUTTON MODEL
MODEL FROM THE 30S
DISTINCTIVE DIAL
THE PIONEER COLLECTION - A MUST FOR COLLECTORS
In 1938, Hanhart designed a single-pusher model for naval officers, which had its own “Caliber 40”. In this unusual wristwatch, all chronograph functions – start, stop and zero setting – are performed using the same pusher and always run in strict sequence. Unlike its counterpart with two pushers, the chronograph second hand cannot be kept running after it has been stopped; the next time it is pressed, it jumps back to its starting point.
WATERPROOF UP TO 10 BAR
ROBUST CASING
QUALITY LEATHER OR STAINLESS STEEL
COMFORTABLE TO WEAR
A LEGEND BECOMES A TRADEMARK
THE RED PUSHER
Legend has it that when a young pilot put on his Hanhart one morning, he discovered that his wife had painted one of the pushers with red nail polish so that he would always remember her and return unharmed.
This distinctive red pusher became Hanhart's trademark from 1939 onwards.
It prevented pilots from unintentionally resetting the stopped time during flight and thus leaving the correct course.
CASE
DIMENSIONS
- Diameter 45 mm
- Height 16 mm
MATERIAL
- Stainless steel
BEZEL
- Fluted bezel with red marking
- Large crown and red pusher
GLASS
- Convex sapphire crystal with anti-reflective coating on both sides
CASE BACK
- Screwed case back
WATER RESISTANCE
- Water-resistant up to 10 bar/10 ATM in accordance with DIN 8310
MOVEMENT
CALIBER
- Automatic chronograph movement HAN4212
- ETA7750 with La Joux-Perret module
- Single lever handle conversion
- 28,800 A/h, 4 Hz, 31 jewels
POWER RESERVE
- 42 hours after full winding
FUNCTIONS
- Small second
- 30-minute counter
DIAL
DIAL
- Black
NUMBERS
- Super-LumiNova® coated
HANDS
- Super-LumiNova® coated
STRAP
STRAP
- Calfskin
- Lug width 23 mm
COLORS
- Black with rivets
- Dark brown with rivets
- Light brown with rivets
BUCKLE
- Pin buckle
